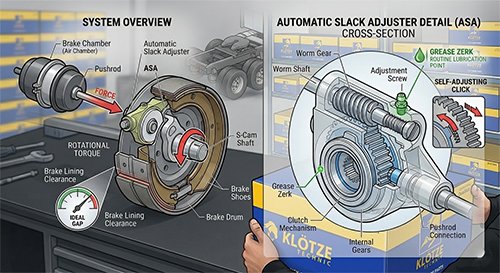

In heavy-duty air brake systems, the slack adjuster is a mechanical link between the brake chamber's pushrod and the S-Cam (Brake Camshaft). Its primary function is to act as a lever, converting the linear force of the air chamber into the rotational torque required to expand the brake shoes against the drum.
As brake linings wear down, the gap (clearance) between the lining and the drum increases. The slack adjuster "takes up the slack," ensuring the brakes respond instantly when the pedal is pressed.
Found mostly on older models, these require a technician to manually turn an adjusting bolt to compensate for lining wear. If neglected, the brake stroke becomes too long, leading to a dangerous loss of braking power.
Standard on modern trucks and trailers, the Automatic Slack Adjuster senses the clearance during every brake application. If the gap exceeds the tolerance, the internal mechanism clicks forward to adjust itself automatically, removing human error from the equation.
Recognizing these symptoms can prevent roadside inspections (DOT) failures and, more importantly, accidents:
Excessive Pushrod Stroke: If the brake chamber pushrod travels more than the legal limit (typically 2 inches / 50 mm), the adjuster is not doing its job.
Uneven Braking: The truck pulls to one side during braking, indicating that one wheel’s adjuster is tighter or looser than the others.
Overheating Brake Drums: If the adjuster is "over-adjusting" or seized, the linings stay in contact with the drum, causing extreme heat and premature wear.
Ajar or Stripped Adjustment Bolt: If the internal gears are worn out, the adjuster will "back off" and fail to hold its setting.
Grease Leaks or Seizing: A lack of lubrication leads to internal corrosion, preventing the automatic mechanism from clicking into the next position.
Pro Tip: If an Automatic Slack Adjuster (ASA) is out of adjustment, do not simply "tighten" it manually. Manually adjusting an ASA is a temporary fix for a mechanical failure. If it won't hold the adjustment automatically, the unit is defective and must be replaced.
Routine Lubrication: Use high-quality chassis grease through the grease zerk. This prevents the internal "worm gear" from seizing due to road salt and moisture.
Visual Stroke Check: During pre-trip inspections, have someone apply the brakes while you observe the pushrod travel. It should be consistent across all axles.
Hardware Inspection: Check the clevis pins and cotter pins connecting the adjuster to the brake chamber. Any "play" or wobbling in these pins reduces braking efficiency.
For fleet owners and operators, slack adjuster maintenance is not just about passing inspections; it’s about ensuring the vehicle can stop safely under full load. A well-maintained braking system saves money on parts and, more importantly, saves lives on the road.
